LatLonProfiles

Description

The LatLonProfiles diagnostic computes and plots zonally or meridionally averaged profiles of climate variables. The diagnostic supports both zonal means (averaged over longitude, showing latitude profiles) and meridional means (averaged over latitude, showing longitude profiles). Time series can be computed as seasonal cycles (DJF, MAM, JJA, SON) or as long-term means over the entire analysis period. Profiles can be computed over specific geographic regions, with default regions available or custom regions definable in the configuration file.

Classes

There are two main classes for computing and plotting latitude-longitude profiles:

• LatLonProfiles: Computes zonally or meridionally averaged profiles of climate variables.

  • Supports zonal mean (average over longitude → latitude profile) and meridional mean (average over latitude → longitude profile)

  • Computes seasonal profiles (DJF, MAM, JJA, SON) and long-term means

  • Optional standard deviation calculation for uncertainty analysis

• PlotLatLonProfiles: Produces publication-quality line plots of the computed profiles.

  • Single-panel plots for long-term means or individual seasons

  • 4-panel plots showing all four seasons together

  • Supports multiple model comparison with optional reference data and ±2σ uncertainty bands

Note

The diagnostic follows a two-step process: spatial averaging (zonal/meridional) → temporal averaging (seasonal/long-term).

Getting Started

File locations:

• Diagnostic code: src/aqua_diagnostics/lat_lon_profiles/

• Region definitions: config/tools/lat_lon_profiles/definitions/regions.yaml

• Example notebooks: notebooks/diagnostics/lat_lon_profiles/

• Config template: templates/diagnostics/config-lat_lon_profiles.yaml

Supported variables:

The diagnostic works with climate variables on regular latitude-longitude grids:

• Direct variables: 2t (temperature), tprate (precipitation), psl (pressure), etc.

• Derived variables: Using EvaluateFormula syntax (e.g., 2t - 273.15 for °C)

Supported regions:

global (or null), tropics, europe, nh (Northern Hemisphere), sh (Southern Hemisphere).

Custom regions can be defined in config/tools/lat_lon_profiles/definitions/regions.yaml.

Basic usage

The recommended way to use this diagnostic is through the Python API, as shown in the notebooks below.

Minimal example:

from aqua.diagnostics.lat_lon_profiles import LatLonProfiles, PlotLatLonProfiles

# Compute zonal profile
llp = LatLonProfiles(
    catalog='climatedt-phase1',
    model='ICON',
    exp='historical-1990',
    source='lra-r100-monthly',
    startdate='1990-01-01',
    enddate='1999-12-31',
    region='tropics',
    mean_type='zonal'  # or 'meridional'
)
llp.run(var='tprate', units='mm/day', std=True)

# Plot long-term mean
plot = PlotLatLonProfiles(data=[llp.longterm], data_type='longterm')
plot.run(outputdir='./')

For seasonal or multi-model comparisons, see the detailed examples in the section below.

Available demo notebooks

📓 Single-model analysis → single_line_profiles.ipynb

Learn the basics: compute profiles, compare with observations, create seasonal plots

📓 Multi-model comparison → multiple_lines_profiles.ipynb

Advanced usage: compare different models, historical vs future scenarios, batch processing

Key concepts covered:

• Zonal vs meridional profiles: mean_type='zonal' or 'meridional'

• Seasonal indexing: seasonal[0] (DJF), seasonal[1] (MAM), seasonal[2] (JJA), seasonal[3] (SON)

• Plot types: data_type='longterm' (single panel) vs 'seasonal' (4 panels)

• Uncertainty bands: ref_data and ref_std_data parameters

• Regional selection and custom regions

CLI usage

For batch processing or automation, the diagnostic can be run via CLI using a configuration file:

# Copy and customize the template
cp templates/diagnostics/config-lat_lon_profiles.yaml my_config.yaml

# Run diagnostic
python src/aqua_diagnostics/lat_lon_profiles/cli_lat_lon_profiles.py \
    --config my_config.yaml \
    --model ICON \
    --exp historical-1990 \
    --loglevel INFO

Key CLI arguments:

--config, --model, --exp, --catalog, --source, --regrid, --realization, --outputdir, --startdate, --enddate, --loglevel, --nworkers

For the complete list of arguments, run:

python src/aqua_diagnostics/lat_lon_profiles/cli_lat_lon_profiles.py --help

Note

Suggested worflow: Copy the template (cp templates/diagnostics/config-lat_lon_profiles.yaml my_config.yaml), customize it with your parameters, and run with --config my_config.yaml.

Quick testing: CLI arguments (--model, --exp, etc.) can override config file values without editing the file, useful for rapid experimentation.

For most use cases, we recommend the programmatic approach (notebooks) rather than CLI.

Configuration file structure

The template (templates/diagnostics/config-lat_lon_profiles.yaml) defines datasets, reference data, and diagnostic parameters:

Basic structure:

# Dataset(s) to analyze
datasets:
  - catalog: 'climatedt-phase1'
    model: 'ICON'
    exp: 'historical-1990'
    source: 'lra-r100-monthly'
    startdate: '1990-01-01'
    enddate: '1999-12-31'

# Reference dataset (optional)
references:
  - catalog: 'obs'
    model: 'ERA5'
    exp: 'era5'
    source: 'monthly'
    std_startdate: '1990-01-01'  # Period for std calculation
    std_enddate: '1999-12-31'

# Output settings
output:
  outputdir: "./"
  save_pdf: true
  save_png: true
  dpi: 300

# Diagnostic configuration
diagnostics:
  lat_lon_profiles:
    run: true
    mean_type: 'zonal'           # or 'meridional'
    seasonal: true               # Compute seasonal profiles
    longterm: true               # Compute long-term mean
    variables:
      - name: 'tprate'
        regions: ['global', 'tropics']

Multiple datasets example (for multi-model comparison):

datasets:
  - catalog: 'climatedt-phase1'
    model: 'ICON'
    exp: 'historical-1990'
    source: 'lra-r100-monthly'
    startdate: '1990-01-01'
    enddate: '1999-12-31'

  - catalog: 'climatedt-phase1'
    model: 'IFS-NEMO'
    exp: 'historical-1990'
    source: 'lra-r100-monthly'
    startdate: '1990-01-01'
    enddate: '1999-12-31'

Derived variables (using formulas):

diagnostics:
  lat_lon_profiles:
    variables:
      - name: '2t'
        regions: ['global']

    formulae:
      - name: 'temp_celsius'
        formula: '2t - 273.15'
        units: '°C'
        long_name: 'Temperature in Celsius'
        regions: ['global', 'tropics']

For the complete template with all available options, see templates/diagnostics/config-lat_lon_profiles.yaml.

Outputs

The diagnostic generates:

📊 Plots (PDF and/or PNG):

• Long-term profiles (single panel)

• Seasonal profiles (4-panel: DJF, MAM, JJA, SON)

• Multi-model comparisons with uncertainty bands

📁 NetCDF files:

• Processed profiles for each frequency and region

• Standard deviation files (if computed)

Naming convention:

<diagnostic>_<mean_type>_profile_<freq>_<var>_<region>_<model>_<exp>.<format>

Example:


Example plots

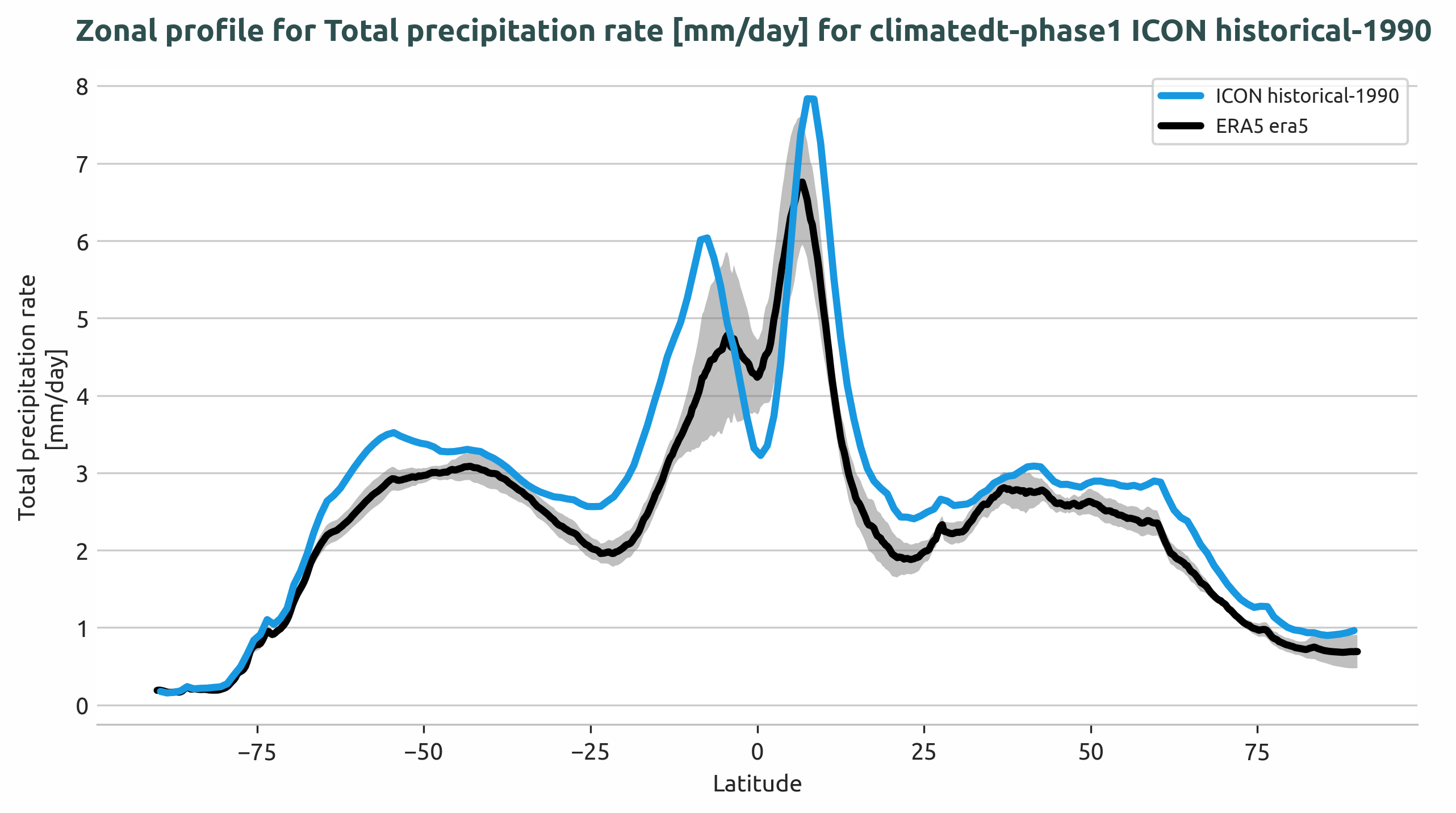

Long-term zonal mean precipitation rate profile for the Tropics region, showing ICON model output compared to ERA5 reference data with ±2σ uncertainty bands.

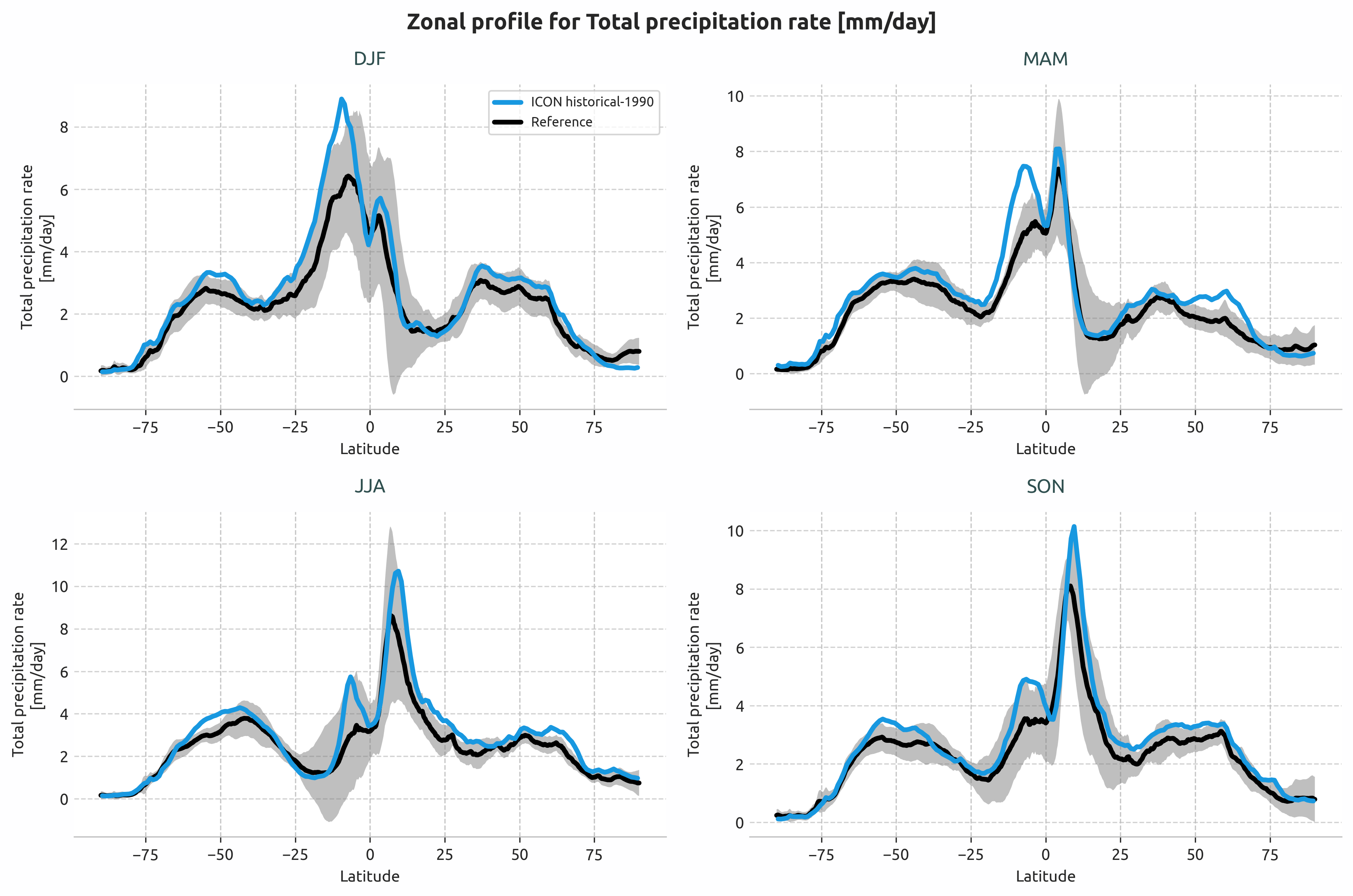

Seasonal zonal mean precipitation rate profiles (DJF, MAM, JJA, SON) for the Tropics region.

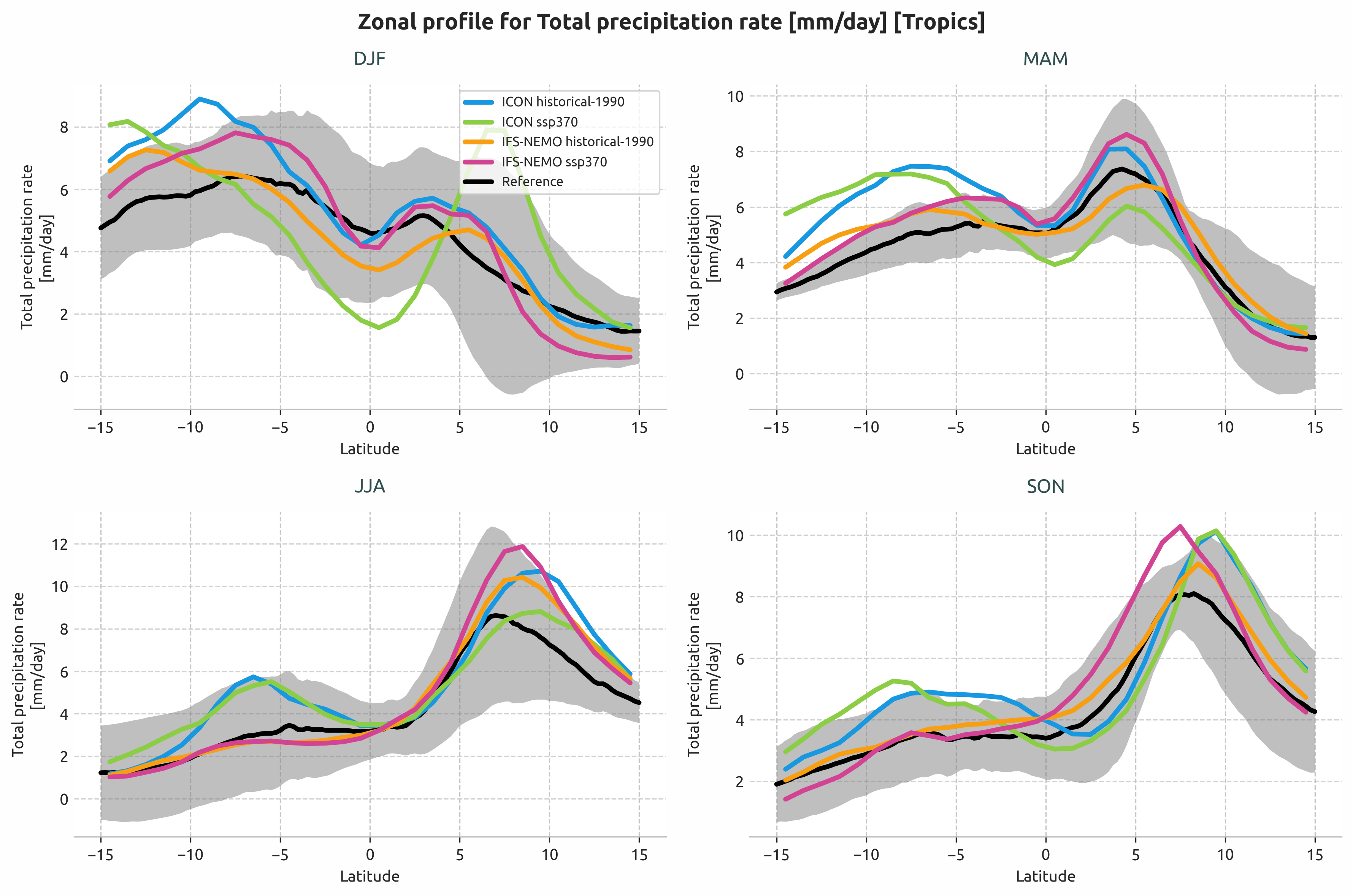

Multi-model comparison: ICON and IFS-NEMO historical and SSP3-7.0 scenarios.

Reference datasets

Common reference datasets:

• ERA5: ECMWF’s fifth generation reanalysis for global climate

• MSWEP: Multi-Source Weighted-Ensemble Precipitation dataset

• BERKELEY-EARTH: Berkeley Earth Surface Temperature dataset

Standard deviation can be computed over a custom period using std_startdate and std_enddate to provide ±2σ uncertainty bands in plots.

Authors and contributors

This diagnostic is maintained by Marco Cadau (@mcadau, marco.cadau@polito.it), member of the AQUA team.

Contributions are welcome — please open an issue or pull request. For questions, contact the AQUA team or the maintainers.

Developer Notes

Internal structure:

The diagnostic uses a two-step averaging process:

1. Spatial averaging via reader.fldmean() with dims parameter:

   • Zonal means: dims=['lon'] → latitude profiles

   • Meridional means: dims=['lat'] → longitude profiles

2. Temporal averaging via reader.timmean() with frequency:

   • Seasonal: freq='seasonal' → 4 DataArrays [DJF, MAM, JJA, SON]

   • Long-term: freq=None → single temporally-averaged DataArray

Data attributes:

Metadata attached to DataArrays for downstream plotting:

• AQUA_mean_type: 'zonal' or 'meridional'

• AQUA_region: Selected region name

• Standard CF attributes: long_name, standard_name, units

Graphics functions:

• plot_lat_lon_profiles(): Single-panel line plots

  • Handles single or multiple DataArrays

  • Supports reference data with optional std shading

  • Auto-detects coordinate names (lat/lon, latitude/longitude)

• plot_seasonal_lat_lon_profiles(): 4-panel seasonal plots

  • Requires exactly 4 elements [DJF, MAM, JJA, SON]

  • Each panel supports multiple model lines

  • Reference data and std shading per season

Data flow:

1. LatLonProfiles.retrieve() → Get data from catalog

2. LatLonProfiles.compute_dim_mean() → Spatial + temporal averaging

3. LatLonProfiles.compute_std() → Optional std computation

4. LatLonProfiles.save_netcdf() → Save processed data

5. PlotLatLonProfiles.__init__() → Load data and metadata

6. PlotLatLonProfiles.run() → Create and save plots

PlotLatLonProfiles data_type parameter:

• data_type='longterm': Single DataArray or list → single-panel plot

• data_type='seasonal': List of 4 elements → 4-panel plot

For seasonal plots with multiple models:

data = [
    [model1_DJF, model2_DJF, ...],  # DJF panel
    [model1_MAM, model2_MAM, ...],  # MAM panel
    [model1_JJA, model2_JJA, ...],  # JJA panel
    [model1_SON, model2_SON, ...]   # SON panel
]

API Reference
